Detaylar

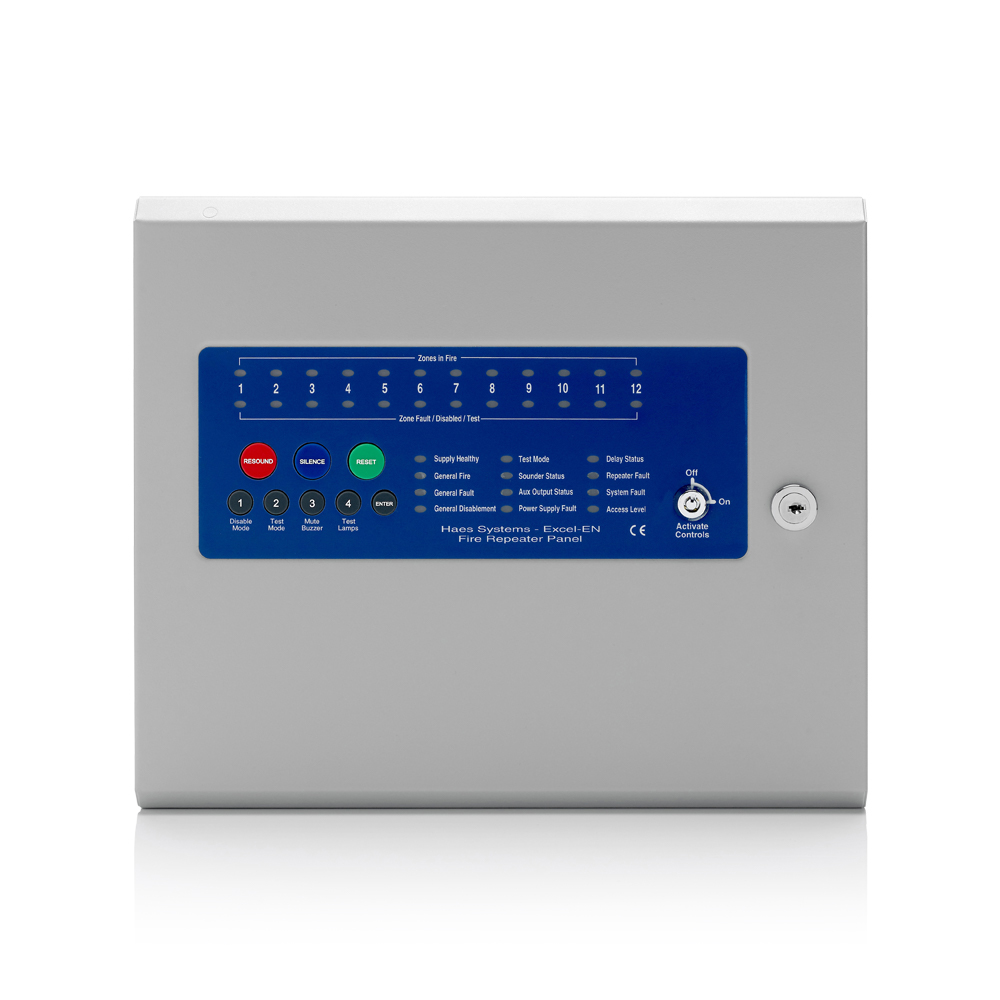

• 12 zonal fire and fault indications
• Activate controls via key switch or code entry
• 1.25 Amp switch mode power supply Nom 27V DC
• Class change I/P
• Alert I/P
• 6 programmable switched -ve outputs
• Test mode, with or without sounders
• Disable zones, sounder O/Ps, aux O/Ps & delays

TECHNICAL SPESIFICATIONS

Enclosure 1.2mm Mild Steel IP30. Colour ref: MW334E Interpon powder coat

Cable Entry Via 20mm knockouts located in the top and rear of the cabinet

Dimensions Back box: 300mm W x 250mm H x 80mm D, Lid: 308mm W x 260mm H x 23mm D

Mains Supply 1.25A internal switch mode power supply, Nom 27v DC

Battery Capacity 2 x 3.2Ah 12v VRSLA

Outputs 6 x programmable sw -ve outputs (included on network card)

Switch Inputs Class change & alert (pulsing)

Communication Wiring Fault tolerant wiring requires 4 core (min 1.5mm) fireproof cable. Legacy radial wiring requires 2 core (min 1.5mm) fireproof cable
